10G Base LR Xenpak Optical Transceiver
Pembelian Minimal :
1 PCS
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
02-08-2013 10:23
Dapatkan Spesifikasi Harga
10G Base LR Xenpak Optical Transceiver Produk Terbaik dari
sfp-xfp Experts in 10GB SFP+|XFP|BIDI XFP|BIDI SFP+,Reliable XENPAK|X2|SFP+|XFP Suppliers,Quality leader in High-speed SFP+ Cables manufacturing,WDM XFP,BIDI XFP,BIDI SFP+,WDM SFP+,X2,SFP+,Optical Moduli,XENPAK
Detail Produk
|

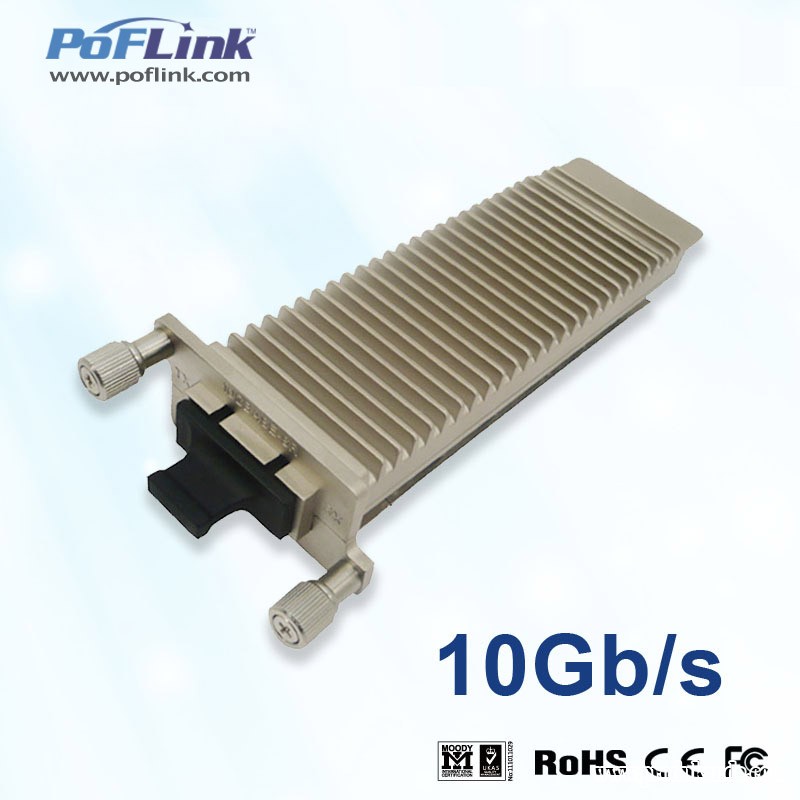

10G XENPAK Transceiver
Description:
POFLink's Xenpak is a standardized form factor for 10 Gb/s fiber optic transponders that is used for data transfer rates from 10.3 Gb/s to 10.5 Gb/s. It is protocol-specific: Either 10G Ethernet or 10G Fibre Channel versions are available. Xenpak transponders are used in datacom optical links only (not telecom). Its electrical interface to the host board is also standardized and is called XAUI (4 x 3.125 Gb/s).
POFLink offers the whole series of 10G XENPAK, including:
Xenpak 10GBASE-SR 300M (MMF OM3);
Xenpak 10GBASE-LR SMF 10-20KM;
Xenpak 10GBASE-ER SMF 40KM;
Xenpak 10GBASE-ZR SMF 80KM
|
|
|
Features:
Hot pluggable X2 MSA form factor
Low total power consumption
RoHS-6 compliant (lead-free)
Temperature range 0°C to 70°C
Transmission distance 300m, 10km, 40km, 80 km
Cooled 1550nm EML or Uncooled directly modulated Distributed Feedback (DFB)
SC connector, single mode fiber
Full duplex transmission mode
Digital Optics Monitoring (DOM)
Power supply: +5.0 V, +3.3 V
XAUI electrical interface 4 x 3.125 Gb/s Ethernet(FTLX1841E2)
Management and control via MDIO 2-wire bus
De-latch mechanism with low extraction force
|
Application:
Xenpak 10GBASE-SR 300M (SMF OM3);
Xenpak 10GBASE-LRM MMF 220M;
Xenpak 10GBASE-LR SMF 10-20KM;
Xenpak 10GBASE-ER SMF 40KM;
Xenpak 10GBASE-ZR SMF 80KM
|
|
|
Standard Products:
|
Part No.
|
Data Rate
|
Distance
|
Wavelength
|
Source
|
Fiber
|
Output Power
|
Sensitivity
|
|
PLK-10G-SR
|
10Gbps
|
300m
|
850nm
|
VCSEL
|
MM
|
-5~-1dBm
|
≦-11.1dBm
|
|
PLK-10G-LR
|
10Gbps
|
10km
|
1310nm
|
DFB
|
SM
|
-8.2~+0.5dBm
|
≦-12.6dBm
|
|
PLK-10G-ER
|
10Gbps
|
40km
|
1550nm
|
EML
|
SM
|
-1~+2 dBm
|
≦-16.0dBm
|
|
PLK-10G-ZR
|
10Gbps
|
80km
|
1550nm
|
EML
|
SM
|
0~+4 dBm
|
≦-23.0dBm
|
|
