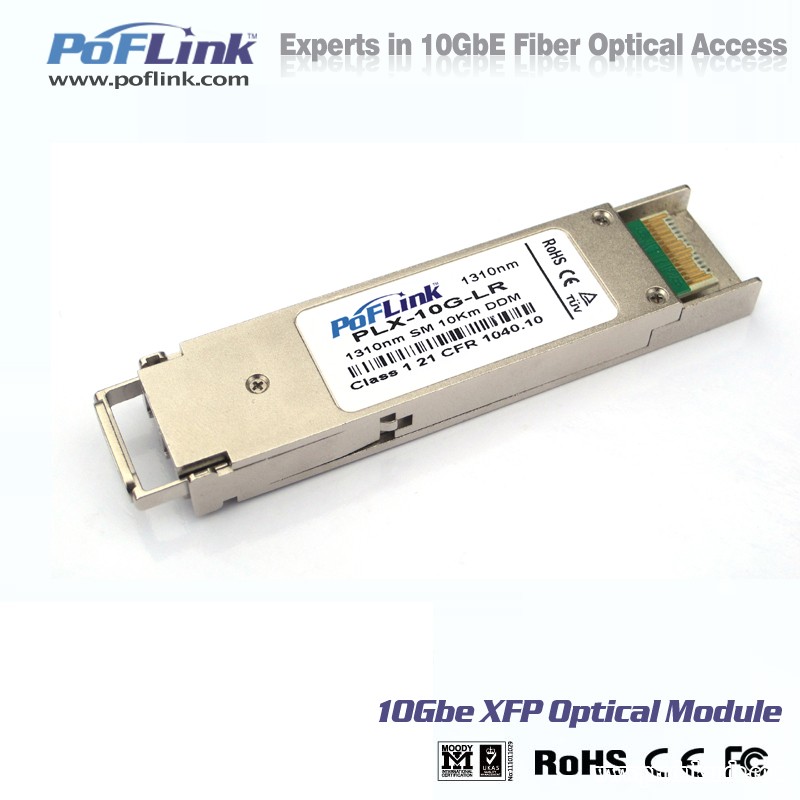

10G Base LR XFP Optical Transceiver
Pengiriman :
3 hari sejak pembayaran
Update Terakhir :
02-08-2013 10:14
Dapatkan Spesifikasi Harga
10G Base LR XFP Optical Transceiver Produk Terbaik dari
sfp-xfp Experts in 10GB SFP+|XFP|BIDI XFP|BIDI SFP+,Reliable XENPAK|X2|SFP+|XFP Suppliers,Quality leader in High-speed SFP+ Cables manufacturing,WDM XFP,BIDI XFP,BIDI SFP+,WDM SFP+,X2,SFP+,Optical Moduli,XENPAK
Detail Produk
|
10G XFP Transceiver
Description:
POFLink's XFP transceiver is a high performance, cost effective modules for serial optical data communications applications specified for signal rates of 9.95 Gb/s to 11.3 Gb/s. It is fully compliant to XFP MSA Rev 4.5.
POFLink offers the whole series of 10G XFP, including
PLX-10G-SR 850nm VCESL&PIN MMF 300m,PLX-10G-LRM 220m,
PLX-10G-LR 1310nm DFB&PIN SMF 10-20km,
PLX-10G-ER 1550nm EML&PIN SMF 40km,
PLX-10G-ZR 1550nm EML&APT SMF 80km.
Our XFP Transceiver is also a small form factor hot pluggable module, its maximum link length is 300m by MMF and 10km~80km by the single mode, it is for the 10GBASE-LR/LW 10G Ethernet and 1200-SM-LL-L 10G Fibre Channel.XFP Transceiver's power dissipation is less than 2W and with dual LC interface. Usually there 4 types of XFP transceiver, XFP-10GB-SR(MM), XFP-10GB-LR(SM), XFP-10GB-ER(SM) and XFP-10GB-ZR(SM). All of them are standard bail release mechanism and digital diagnostic functions inside.
|
|
|
Features:
Supports 9.95Gb/s to 11.3Gb/s bit rates
IEC 60825-1 Class 1/CDRH Class 1 laser eye safety.
Hot-pluggable XFP foTTPrint
XFI Loopback Mode
Superior Thermal and EMI integrity performance to support high port densities
LC Duplex optical connector interface conforming to ANSI TIA/EIA604-10 (FOCIS 10)
Built-in digital diagnostic functions, DDMI
|
Application:
PLX-10G-SR 850nm VCESL&PIN MMF 300m
PLX-10G-LR 1310nm DFB&PIN SMF 10-20km
PLX-10G-ER 1550nm EML&PIN SMF 40km
PLX-10G-ZR 1550nm EML&APT SMF 80km
|
|
|
Standard Products:
|
Part No.
|
Data Rate
|
Distance
|
Wavelength
|
Source
|
Fiber
|
Output Power
|
Sensitivity
|
|
PLX-10G-SR
|
10Gbps
|
300m
|
850nm
|
VCSEL
|
MM
|
-5~-1dBm
|
≦-11.1dBm
|
|
PLX-10G-LR
|
10Gbps
|
10km
|
1310nm
|
DFB
|
SM
|
-8.2~+0.5dBm
|
≦-14.0dBm
|
|
PLX-10G-ER
|
10Gbps
|
40km
|
1550nm
|
EML
|
SM
|
-1~+2 dBm
|
≦-16.0dBm
|
|
PLX-10G-ZR
|
10Gbps
|
80km
|
1550nm
|
EML
|
SM
|
0~+4 dBm
|
≦-23.0dBm
|
|
